ICU / HOSPITAL BED


ICU Bed Mechanically (ABS Panel)

P-001
  • Frame Work made of rectangular M.S Tube.
  • 4 Section top made of perforated MS Sheet.
  • Backrest, Knee Rest, TB / RTB and Hi-Lo Posirions manoeurved by separate screw from foot end.
  • ABS moulded head & foot panels.
  • Collapsible type safety side railings : MS Powder Coated horizontal tubes fixed to aluminium ally end brackets. Easily datachable.
  • Telescopic IV Rod with four locations.
  • Bed mounted on 125 mm dia castor two with brackets.
  • Overall Size : 2010 L x 90 W x 60-80 H cm
  • Finish : Epoxy Powder Coated


    • ICU Bed Mechanically (SS Bows)

    P-002
  • Approx. Overall Size 2100 mm L x 900 mm W x 600 mm to 800 mm H.
  • The matters platform frame work made of ERW CRC rectangular tubes.
  • 4 sections top made of CRC perforated sheet.
  • Backrest section, Knee section, Trendlenberg / Reverse Trendlenberg and Hi-Lo adjustment maneuvered by separate screw with one common detachable handle from foot end.
  • Detachable S.S head and foot bows fitted with laminated panels.
  • Trolley type base on 125 mm dia castors 2 with brake.
  • Four location of I.V Rod with one Telescopic S.S I.V Rod.
  • Collapsible safety side Railing.
  • Finish: Epoxy Powder Coated.
    •

    ICU Bed Mechanically (Fixed Height ABS Panels)

    P-003
  • Frame work made of rectangular M.S Tube.
  • 4 sections top made of perforated MS Sheet.
  • Backrest, Knee Rest, TB / RTB and Hi-Lo Position.
  • ABS moulded head & foot panels.
  • Collapsible type safety side railings.
  • Telescopic IV Rod with four locations.
  • Bed mounted on 125 mm dia castor two with brakes.
  • Overall Size: 210 L x 90 W x 60-80 H cm.
  • Finish: Epoxy Powder Coated.


    • ICU BED MECHANICAL

    P-004
  • Two Pieces individual detachable side-rails, stainless steel.
  • Stainless steel head and foot panel with laminated board and corner buffer.
  • Framework made up of M.S Tubes.
  • 4 section Top made up of oval perforated CRCA M.S Sheet.
  • Bed mounted on 5” Castors, 2 with brakes.
  • S.S Telescopic I.V Rod with 4 locations.
  • Holder for urine bag.
  • Finish: Pretreated & Epoxy Powered Coated.
  • Overall Approx. Size: 2090 L x 910 W x 625.820 H mm.
  • Positions obtained by smooth crank system with foldable handle
    • Hi-Low
    • Backrest elevation
    • Knee rest elevation
    • Trendlenburg / Reverse Trendlenburg

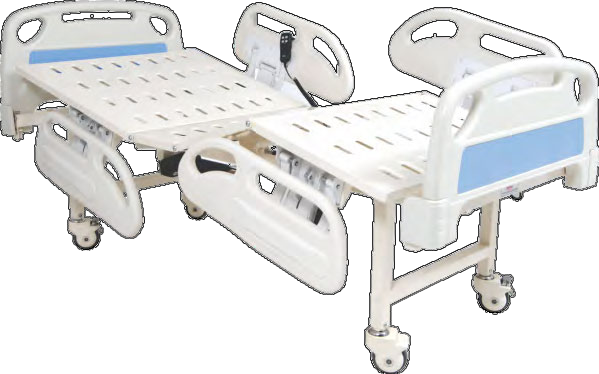

    HOSPITAL FOWLER BED ELECTRIC

    P-005
  • Advance linear actuator system (02 pcs Moto, 01 pc Control box, 01 pc Handset).
  • Four pieces individual side-rails, ABS Moulded.
  • Heavy ABS Head and Foot Panel with locking and corner buffer.
  • Framework made up of M.S Tubes.
  • 4 sections top made up of Oval perforated CRCA M.s Sheet.
  • Bed Mounted on 4” Castors, 2 with brakes.
  • Finish Pretreated & Epoxy Powder Coated.
  • Overall Approx. Size: 2090 L x 910 W x 600 H mm.
  • Position Obtained by hand remote
    • Backrest Elevation
    • Knee rest Elevation

    • Hospital Fowler Bed (STD)

    P-007
  • Frame work made of rectangular M.S Tube.
  • 4 section top made of perforated CRCA Sheet duly machine press bent.
  • Backrest, Knee rest positions maneuvered by two separate screws.
  • Provision for IV Saline locations.
  • Bed mounted on 100 mm dia castor two with brakes.
  • Overall Size: 206 L x 90 W x 60-80 H crns.
  • Finish: Epoxy Powder Coated.

    • Hospital Semi Fowler Bed (SS Panels)

    P-009
  • Frame work made of rectangular M.S Tube.
  • 2 sections top made of perforated MS Sheet.
  • Backrest, Knee rest Positions maneuvered by screws Handle from Foot End.
  • SS moulded head & foot Bows with laminated panels.
  • 4 locations for I.V Rod.
  • Overall Size: 206 L x 90 W x 60 H cms.
  • Finish: Epoxy Powder Coated.

    • Paediatric Bed

    P-012
  • Overall approx. dimension: 1430 mm L x 762 mm W x 600 mm H.
  • Approx. bed frame dimension: 1372 mm L x 762 mm W.
  • Frame work made of CRCA rectangular tubes.
  • Top made of CRCA perforated sheet.
  • Full length drop side rails on both sides.
  • Tubular head and foot bows of equal heights with one cross support and six vertical on PVC coated.
  • Finish: pre treated and epoxy powder coated.

    • Attendant Bed Cum Chair

    P-014
  • The fabric is pressed artificial leather.
  • Overall size: 190 L x 62 W x 58 H cms.
  • Frame work made of rectangular/square M.S tubes.
  • Finish: epoxy powder coated.
